Post-processing for fiber section responses

This example is adapted from:

Reinforced Concrete Frame Pushover Analysis

Note

Since fiber cross-sections typically have a large number of fiber points, it is not recommended to save the responses of all elements when the number of elements is large. It is recommended to save only the responses of critical elements.

import matplotlib.pyplot as plt
import numpy as np
import openseespy.opensees as ops

import opstool as opst

Model

ops.wipe()
ops.model("basic", "-ndm", 3, "-ndf", 6)
width = 360.0
height = 144.0
ops.node(1, 0.0, 0.0, 0.0)
ops.node(2, width, 0.0, 0.0)
ops.node(3, 0.0, 0.0, height)
ops.node(4, width, 0.0, height)
ops.fix(1, 1, 1, 1, 1, 1, 1)
ops.fix(2, 1, 1, 1, 1, 1, 1)

matTagConc1 = 1  # CORE
matTagConc2 = 2  # COVER
ops.uniaxialMaterial("Concrete02", matTagConc1, -6.0, -0.004, -5.0, -0.014, 0.2, 0.6, 300)
ops.uniaxialMaterial("Concrete02", matTagConc2, -5.0, -0.002, 0.0, -0.006, 0.2, 0.6, 300)

fy = 60.0
E = 30000.0
matTagSteel = 3
ops.uniaxialMaterial("Steel01", matTagSteel, fy, E, 0.01)

colWidth = 15
colDepth = 24
cover = 1.5
As = 0.60  # area of no. 7 bars
dia = 2 * np.sqrt(As / np.pi)
y1 = colDepth / 2.0
z1 = colWidth / 2.0

outer_points = [(-y1, -z1), (y1, -z1), (y1, z1), (-y1, z1)]
inner_points = opst.pre.section.offset(outer_points, d=cover)
cover_patch = opst.pre.section.create_polygon_patch(outer_points, holes=[inner_points])
core_patch = opst.pre.section.create_polygon_patch(inner_points)
SEC = opst.pre.section.SecMesh()
SEC.add_patch_group({"cover": cover_patch, "core": core_patch})
SEC.set_ops_mat_tag({"cover": matTagConc2, "core": matTagConc1})
SEC.set_mesh_size(1)
SEC.add_rebar_line(
    points=[(y1 - cover - dia / 2, z1 - cover - dia / 2), (y1 - cover - dia / 2, cover - z1 + dia / 2)],
    n=5,
    dia=dia,
    ops_mat_tag=matTagSteel,
)
SEC.add_rebar_line(
    points=[(0.0, z1 - cover - dia / 2), (0.0, cover - z1 + dia / 2)], n=2, dia=dia, ops_mat_tag=matTagSteel
)
SEC.add_rebar_line(
    points=[(cover - y1 + dia / 2, z1 - cover - dia / 2), (cover - y1 + dia / 2, cover - z1 + dia / 2)],
    n=5,
    dia=dia,
    ops_mat_tag=matTagSteel,
)

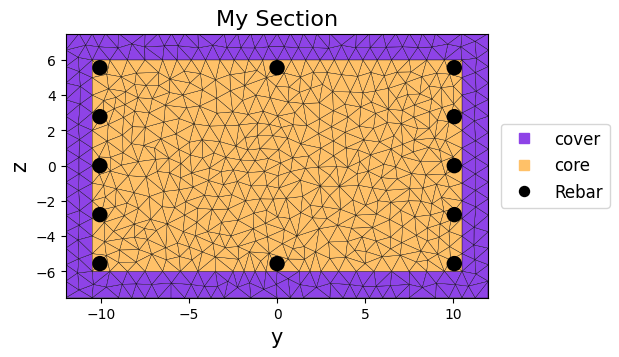

SEC.mesh()
ax = SEC.view()
plt.show()

OPSTOOL :: The section My Section has been successfully meshed!

We can save this section class:

import pickle

with open("data/my-section.pkl", "wb") as f:
    pickle.dump(SEC, f)

SEC.to_opspy_cmds(secTag=1, GJ=1000000)  # to OpenSeesPy commands

# Define column elements
# ----------------------
ops.geomTransf("PDelta", 1, -1, 0, 0)
# Number of integration points along length of element
np_ = 5
# Lobatto integratoin
ops.beamIntegration("Lobatto", 1, 1, np_)
eleType = "forceBeamColumn"
ops.element(eleType, 1, 1, 3, 1, 1)
ops.element(eleType, 2, 2, 4, 1, 1)

# Define beam elment
# -----------------------------
ops.geomTransf("Linear", 2, 0.0, 0.0, 1.0)
ops.element("elasticBeamColumn", 3, 3, 4, 360.0, 4030.0, 2015.0, 10000, 8640.0, 8640.0, 2)

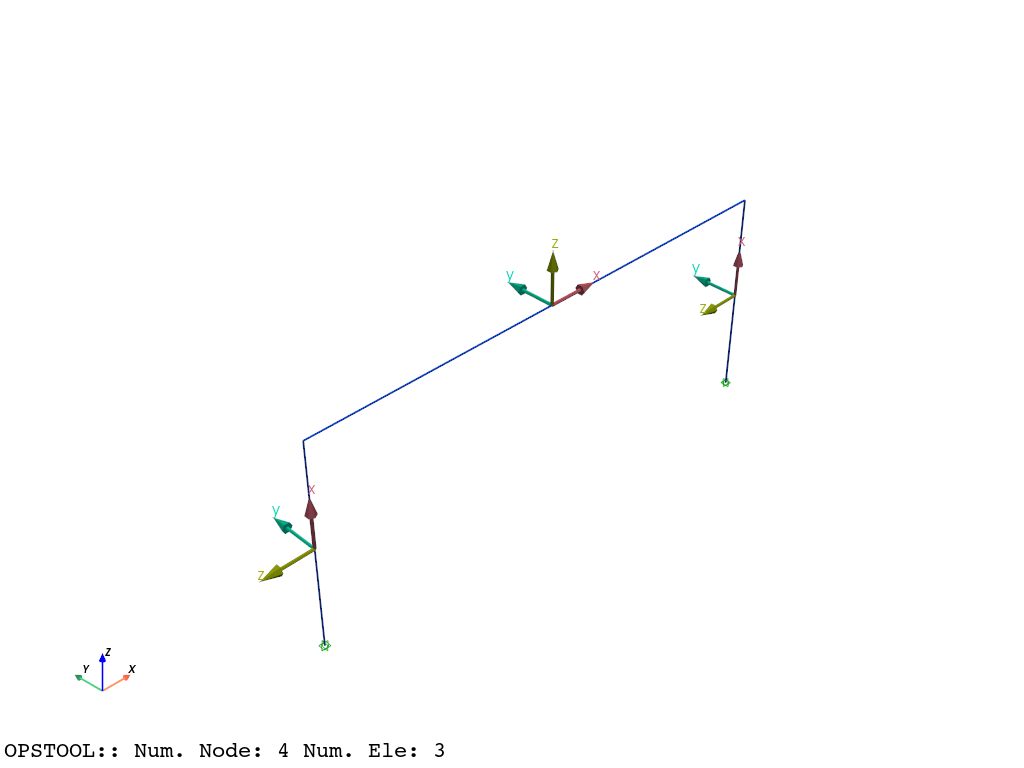

opst.vis.pyvista.set_plot_props(notebook=True)  # you should not use
fig = opst.vis.pyvista.plot_model(show_local_axes=True)
fig.show(jupyter_backend="jupyterlab")
# fig.show()

Gravity analysis

# Define gravity loads
# --------------------

#  a parameter for the axial load
P = 180.0  # 10% of axial capacity of columns

# Create a Plain load pattern with a Linear TimeSeries
ops.timeSeries("Linear", 1)
ops.pattern("Plain", 1, 1)

# Create nodal loads at nodes 3 & 4
#    nd  FX,  FY, MZ
ops.load(3, 0.0, 0.0, -P, 0.0, 0.0, 0.0)
ops.load(4, 0.0, 0.0, -P, 0.0, 0.0, 0.0)

# Start of analysis generation
# ------------------------------
ops.system("BandGeneral")
ops.constraints("Transformation")
ops.numberer("RCM")
ops.test("NormDispIncr", 1.0e-12, 10, 3)
ops.algorithm("Newton")
ops.integrator("LoadControl", 0.1)
ops.analysis("Static")
ops.analyze(10)

0

Pushover analysis

Define lateral loads

ops.loadConst("-time", 0.0)
# Define lateral loads
# --------------------
# Set some parameters
H = 10.0  # Reference lateral load
# Set lateral load pattern with a Linear TimeSeries
ops.pattern("Plain", 2, 1)
ops.load(3, H, 0.0, 0.0, 0.0, 0.0, 0.0)
ops.load(4, H, 0.0, 0.0, 0.0, 0.0, 0.0)

Start of modifications to analysis for push over

# Set some parameters
dU = 0.1  # Displacement increment
ops.integrator("DisplacementControl", 3, 1, dU)
# Set some parameters
maxU = 15.0  # Max displacement
currentDisp = 0.0
ok = 0

ops.test("NormDispIncr", 1.0e-6, 1000)
ops.algorithm("KrylovNewton")

Save the responses. Args see CreateODB

ODB = opst.post.CreateODB(odb_tag=1, save_fiber_sec_resp=True, fiber_ele_tags=[1, 2])
while ok == 0 and currentDisp < maxU:
    ok = ops.analyze(1)

    # if the analysis fails try initial tangent iteration
    if ok != 0:
        print("KrylovNewton failed")
        break

    ODB.fetch_response_step()

    currentDisp = ops.nodeDisp(3, 1)

ODB.save_response()

OPSTOOL ::  All responses data with _odb_tag = 1 saved in
g:\opstool\docs\src\post\.opstool.output/RespStepData-1.zarr!

Post-processing

Fiber Section

Extracting fiber cross responses

sec_resp = opst.post.get_element_responses(odb_tag=1, ele_type="FiberSection")  # odb_tag=1 as above
print(sec_resp.data_vars)
print("-" * 100)
print(sec_resp.dims)
print("-" * 100)
print(sec_resp.coords)

OPSTOOL ::  Loading FiberSection response data from g:\opstool\docs\src\post\.opstool.output/RespStepData-1.zarr
...

Data variables:
    areas     (eleTags, secPoints, fiberPoints) float64 90kB 0.3809 ... 0.6
    secDefo   (time, eleTags, secPoints, DOFs) float32 24kB -0.0001213 ... 1....
    matTags   (eleTags, secPoints, fiberPoints) float64 90kB 2.0 2.0 ... 3.0 3.0
    secForce  (time, eleTags, secPoints, DOFs) float32 24kB -180.0 ... 0.1157
    Strains   (time, eleTags, secPoints, fiberPoints) float32 7MB -0.0001213 ...
    Stresses  (time, eleTags, secPoints, fiberPoints) float32 7MB -0.588 ... ...
    zs        (eleTags, secPoints, fiberPoints) float64 90kB 3.354 ... -5.563
    ys        (eleTags, secPoints, fiberPoints) float64 90kB -11.73 ... -10.06
----------------------------------------------------------------------------------------------------
FrozenMappingWarningOnValuesAccess({'eleTags': 2, 'secPoints': 5, 'fiberPoints': 1129, 'time': 152, 'DOFs': 4})
----------------------------------------------------------------------------------------------------
Coordinates:
  * DOFs         (DOFs) <U2 32B 'P' 'Mz' 'My' 'T'
  * eleTags      (eleTags) int32 8B 1 2
  * fiberPoints  (fiberPoints) int32 5kB 1 2 3 4 5 ... 1125 1126 1127 1128 1129
  * secPoints    (secPoints) int32 20B 1 2 3 4 5
  * time         (time) float32 608B 0.0 0.6684 1.319 ... 3.097 3.091 3.086

We can select the responses of element 1 and its first section, time=-1 means that the last time is used.

stress = sec_resp["Stresses"].sel(eleTags=1, secPoints=1).isel(time=-1)
strain = sec_resp["Strains"].sel(eleTags=1, secPoints=1).isel(time=-1)
y = sec_resp["ys"].sel(eleTags=1, secPoints=1)
z = sec_resp["zs"].sel(eleTags=1, secPoints=1)
points = np.stack((y.values, z.values), axis=-1)  # (num_fiber_points, 2), used for plotting response
print("-" * 100)
print("strain\n", strain.coords)  # eleTags, time, secPoints are fixed by sel and isel above, fiberPoints remain
print("-" * 100)
print("y\n", y.coords)  # eleTags, secPoints are fixed by sel and isel above, fiberPoints remain
print("-" * 100)
print("points\n", points.shape)  # (num_fiber_points, 2)

----------------------------------------------------------------------------------------------------
strain
 Coordinates:
    eleTags      int32 4B 1
  * fiberPoints  (fiberPoints) int32 5kB 1 2 3 4 5 ... 1125 1126 1127 1128 1129
    secPoints    int32 4B 1
    time         float32 4B 3.086
----------------------------------------------------------------------------------------------------
y
 Coordinates:
    eleTags      int32 4B 1
  * fiberPoints  (fiberPoints) int32 5kB 1 2 3 4 5 ... 1125 1126 1127 1128 1129
    secPoints    int32 4B 1
----------------------------------------------------------------------------------------------------
points
 (1129, 2)

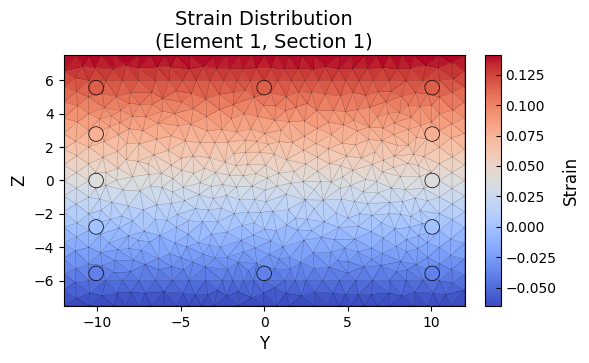

Plotting the strain distribution:

In version v1.0.21 and later, the SecMesh class added a function plot_response to visualize a given response, which automatically maps the response based on the coordinates of the triangular mesh.

import pickle

with open("data/my-section.pkl", "rb") as f:
    SEC = pickle.load(f)

fig, ax = plt.subplots(figsize=(6, 5))
ax, cbar = SEC.plot_response(
    points=points,  # (num_fiber_points, 2)
    response=strain,  # (num_fiber_points,)
    mat_tag=None,
    cmap="coolwarm",
    ax=ax,
)
cbar.set_label("Strain", fontsize=12)
ax.set_title("Strain Distribution\n(Element 1, Section 1)", fontsize=14)
ax.set_xlabel("Y", fontsize=12)
ax.set_ylabel("Z", fontsize=12)
fig.tight_layout(rect=[0, 0, 1, 1])

plt.show()

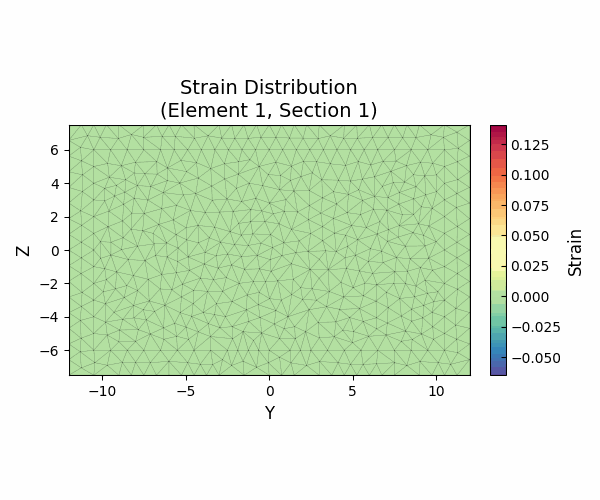

We can also use imageio to create animations for all moments.

Here, we select concrete fibers (material tag with 1 and 2) using Boolean operations, and then specify a failure threshold for these two materials using a threshold parameter. Mesh elements exceeding the threshold are hollowed out to simulate failure.

import imageio.v2 as imageio

mat = sec_resp["matTags"].sel(eleTags=1, secPoints=1)
cond = (mat == 1) | (mat == 2)  # concrete fibers only
# overall min strain across all time steps
vmin = sec_resp["Strains"].sel(eleTags=1, secPoints=1, fiberPoints=cond).min().values
# overall max strain across all time steps
vmax = sec_resp["Strains"].sel(eleTags=1, secPoints=1, fiberPoints=cond).max().values

with imageio.get_writer("images/fiber-section-strain.gif", mode="I", fps=6) as writer:
    for t in range(len(sec_resp["time"])):
        strain = sec_resp["Strains"].sel(eleTags=1, secPoints=1).isel(time=t)

        fig, ax = plt.subplots(figsize=(6, 5))
        ax, cbar = SEC.plot_response(
            points=points,
            response=strain.values,
            cmap="Spectral_r",
            ax=ax,
            mat_tag=[1, 2],  # concrete fibers only
            thresholds={2: (-0.006, 0.002), 1: (-0.015, 0.002)},  # failure thresholds, 2: cover, 1: core
        )
        cbar.set_label("Strain", fontsize=12)
        cbar.mappable.set_clim(vmin, vmax)
        ax.set_title("Strain Distribution\n(Element 1, Section 1)", fontsize=14)
        ax.set_xlabel("Y", fontsize=12)
        ax.set_ylabel("Z", fontsize=12)
        fig.tight_layout(rect=[0, 0, 1, 1])

        # Convert Matplotlib figure to image and append to gif
        fig.canvas.draw()
        image = np.frombuffer(fig.canvas.buffer_rgba(), dtype=np.uint8)
        image = image.reshape((*fig.canvas.get_width_height()[::-1], 4))
        writer.append_data(image)

        plt.close(fig)

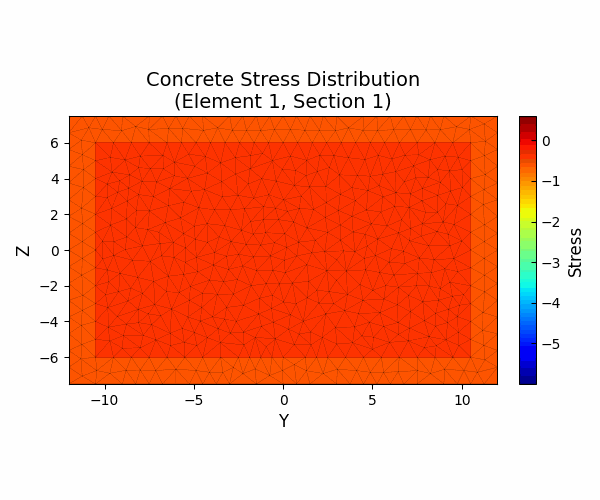

Similarly, we can also visualize stress.

mat = sec_resp["matTags"].sel(eleTags=1, secPoints=1)
cond = (mat == 1) | (mat == 2)  # concrete fibers only
vmin = sec_resp["Stresses"].sel(eleTags=1, secPoints=1, fiberPoints=cond).min().values
vmax = sec_resp["Stresses"].sel(eleTags=1, secPoints=1, fiberPoints=cond).max().values

with imageio.get_writer("images/fiber-section-stress.gif", mode="I", fps=5) as writer:
    for t in range(len(sec_resp["time"])):
        stress = sec_resp["Stresses"].sel(eleTags=1, secPoints=1).isel(time=t)

        fig, ax = plt.subplots(figsize=(6, 5))
        ax, cbar = SEC.plot_response(points=points, response=stress, mat_tag=[1, 2], cmap="jet", ax=ax)
        cbar.set_label("Stress", fontsize=12)
        cbar.mappable.set_clim(vmin, vmax)
        ax.set_title("Concrete Stress Distribution\n(Element 1, Section 1)", fontsize=14)
        ax.set_xlabel("Y", fontsize=12)
        ax.set_ylabel("Z", fontsize=12)
        fig.tight_layout(rect=[0, 0, 1, 1])

        fig.canvas.draw()
        image = np.frombuffer(fig.canvas.buffer_rgba(), dtype=np.uint8)
        image = image.reshape((*fig.canvas.get_width_height()[::-1], 4))
        writer.append_data(image)

        plt.close(fig)

Of course, we can also handle it ourselves.

# We can also extract stresses and strains for specific materials.
stress = sec_resp["Stresses"].sel(eleTags=1, secPoints=1).isel(time=-1)
strain = sec_resp["Strains"].sel(eleTags=1, secPoints=1).isel(time=-1)
y = sec_resp["ys"].sel(eleTags=1, secPoints=1)
z = sec_resp["zs"].sel(eleTags=1, secPoints=1)
mat = sec_resp["matTags"].sel(eleTags=1, secPoints=1)

cond = (mat == 1) | (mat == 2)

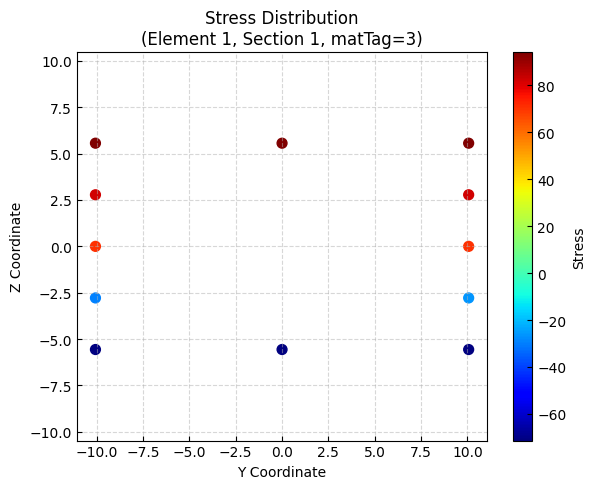

matTag = 3 for rebar:

plt.figure(figsize=(6, 5))
scatter = plt.scatter(y[~cond], z[~cond], c=stress[~cond], cmap="jet", s=50)
plt.xlabel("Y Coordinate")
plt.ylabel("Z Coordinate")
plt.title("Stress Distribution\n(Element 1, Section 1, matTag=3)")
plt.colorbar(scatter, label="Stress")
plt.axis("equal")
plt.grid(True, linestyle="--", alpha=0.5)
plt.tight_layout()
plt.show()

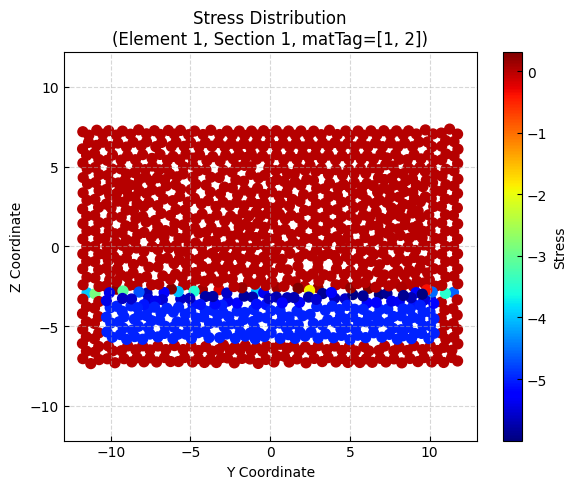

mattag = [1, 2] for concrete:

plt.figure(figsize=(6, 5))
scatter = plt.scatter(y[cond], z[cond], c=stress[cond], cmap="jet", s=50)
plt.xlabel("Y Coordinate")
plt.ylabel("Z Coordinate")
plt.title("Stress Distribution\n(Element 1, Section 1, matTag=[1, 2])")
plt.colorbar(scatter, label="Stress")
plt.axis("equal")
plt.grid(True, linestyle="--", alpha=0.5)
plt.tight_layout()
plt.show()

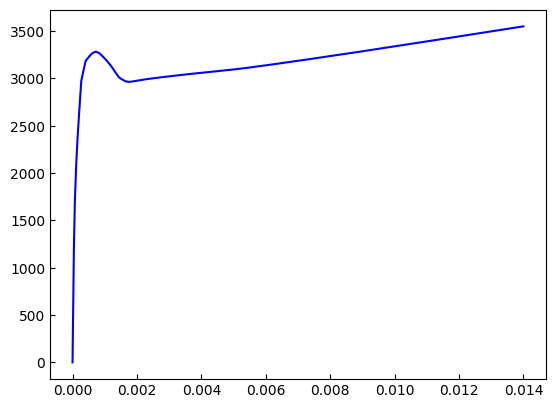

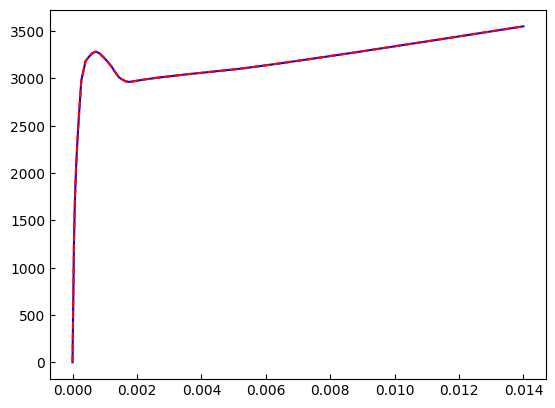

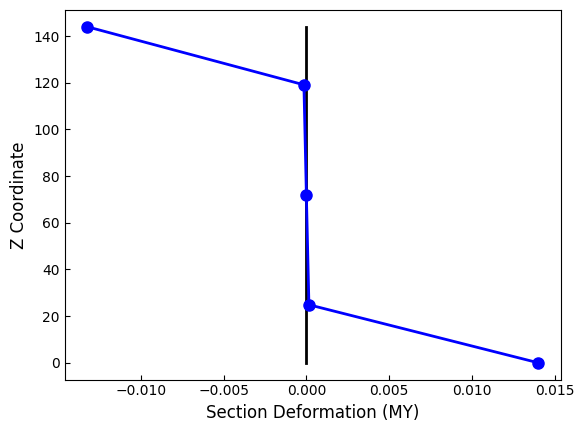

We can also extract the force and deformation response at the cross-section level

defo = sec_resp["secDefo"].sel(eleTags=1, secPoints=1, DOFs="My")
fo = sec_resp["secForce"].sel(eleTags=1, secPoints=1, DOFs="My")
print(defo.head())

<xarray.DataArray 'secDefo' (time: 5)> Size: 20B
array([1.5155445e-21, 2.0417334e-05, 4.3028922e-05, 7.2857343e-05,
       1.1079801e-04], dtype=float32)
Coordinates:
    DOFs       <U2 8B 'My'
    eleTags    int32 4B 1
    secPoints  int32 4B 1
  * time       (time) float32 20B 0.0 0.6684 1.319 1.874 2.323

plt.plot(defo, fo, c="b")
plt.show()

Frame elements

frame_resp = opst.post.get_element_responses(odb_tag=1, ele_type="Frame")
print(frame_resp)

OPSTOOL ::  Loading Frame response data from g:\opstool\docs\src\post\.opstool.output/RespStepData-1.zarr ...

<xarray.Dataset> Size: 260kB
Dimensions:              (time: 152, eleTags: 3, basicDofs: 6, localDofs: 12,
                          secPoints: 7, secDofs: 6, locs: 4)
Coordinates:
  * basicDofs            (basicDofs) <U3 72B 'N' 'MZ1' 'MZ2' 'MY1' 'MY2' 'T'
  * eleTags              (eleTags) int32 12B 1 2 3
  * localDofs            (localDofs) <U3 144B 'FX1' 'FY1' 'FZ1' ... 'MY2' 'MZ2'
  * locs                 (locs) <U5 80B 'alpha' 'X' 'Y' 'Z'
  * secDofs              (secDofs) <U2 48B 'N' 'MZ' 'VY' 'MY' 'VZ' 'T'
  * secPoints            (secPoints) int32 28B 1 2 3 4 5 6 7
  * time                 (time) float32 608B 0.0 0.6684 1.319 ... 3.091 3.086
Data variables:
    basicDeformations    (time, eleTags, basicDofs) float32 11kB -0.01746 ......
    basicForces          (time, eleTags, basicDofs) float32 11kB -180.0 ... -...
    localForces          (time, eleTags, localDofs) float32 22kB -180.0 ... -...
    plasticDeformation   (time, eleTags, basicDofs) float32 11kB -0.0003215 ....
    sectionForces        (time, eleTags, secPoints, secDofs) float32 77kB -18...
    sectionDeformations  (time, eleTags, secPoints, secDofs) float32 77kB -0....
    sectionLocs          (time, eleTags, secPoints, locs) float32 51kB 0.0 .....
Attributes:
    localDofs:  local coord system dofs at end 1 and end 2
    basicDofs:  basic coord system dofs at end 1 and end 2
    secPoints:  section points No.
    secDofs:    section forces and deformations Dofs. Note that the section D...
    Notes:      Note that the deformations are displacements and rotations in...

fo2 = frame_resp["sectionForces"].sel(eleTags=1, secPoints=1, secDofs="MY")
defo2 = frame_resp["sectionDeformations"].sel(eleTags=1, secPoints=1, secDofs="MY")

plt.plot(defo2, fo2, c="b")
plt.plot(defo, fo, "--r")
plt.show()

fos = frame_resp["sectionForces"].sel(eleTags=1, secDofs="MY").isel(time=-1)
defos = frame_resp["sectionDeformations"].sel(eleTags=1, secDofs="MY").isel(time=-1)

sec_loc = frame_resp["sectionLocs"].sel(eleTags=1)
xloc = sec_loc.sel(locs="X").isel(time=-1)
yloc = sec_loc.sel(locs="Y").isel(time=-1)
zloc = sec_loc.sel(locs="Z").isel(time=-1)

plt.plot(xloc, zloc, "-k", lw=2)
plt.plot(xloc + defos, zloc, "-b", lw=2, marker="o", markersize=8)
plt.xlabel("Section Deformation (MY)", fontsize=12)
plt.ylabel("Z Coordinate", fontsize=12)
plt.show()
